Tapete de Iluminacao de Garrafa IoT

Arte Interativa

Se você ainda não tem uma máquina para imprimir este arquivo pode comprar uma impressora 3d aqui!

Você pode imprimir este modelo 3d com estes filamentos ou com estas resinas 3D.

Sobre o objeto 3D Tapete de Iluminacao de Garrafa IoT

Este é um arquivo desenvolvido e projetado com ferramenta CAD.

Se você ainda não sabe criar seu próprio modelo 3D eu te ensino neste artigo tutorial sobre Tinkercad.

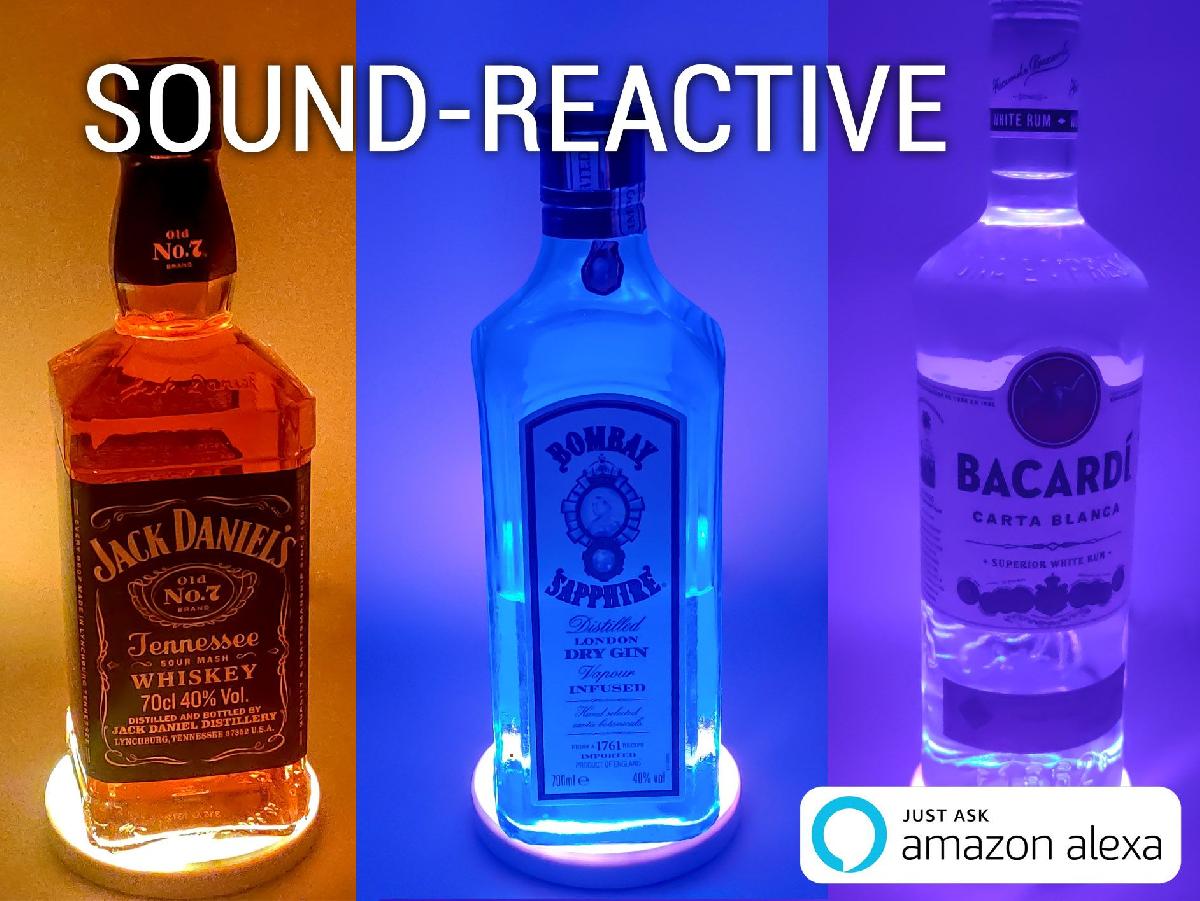

Tapete de Iluminacao de Garrafa IoT foi projetado para Impressora 3D. A simple but smart lighting for any bottle you want. There is also an adapter for large bottles (2L+).It features an easy to use webinterface that runs on an ESP8266 that was forked from jasoncoon.The website allows for easy access to the different patterns, brightness and power control.Hardware1x Wemos D1 mini is recommended, but any other ESP8266 variant should work too, but it might require an additional step-down converter.1x 24Bit WS2812 RGB LED Ring, make sure you choose the ring with 24 led pixel. The ring must have OD: 85mm; ID: 72mm.1x AWG 22, 3 pin wireThe links above are affiliate LinksIt has many cool and modular features, which can be configured or disable individually:40+ preconfigured animationsSound reactive to a windows audio output using the IoT-Audio-Visualization-CenterAlexa integrationMQTT/HomeAssistant supportmDNS to be easily located in the networkSerial ambilight to be used behind a TVWebUI with light and dark themeOTA integration to be updated wirelessSoftwareThe software and detailed setup instructions can be found on GitHub:>>Software<<, >>Instructions<<For beginners there is a setup tutorial too, please mind that the versions mentioned in the video are no longer correct.Troubleshooting"Not found :/" errorThe webserver showing "not found :/" indicates that no sketch data is located on the device. This could be the case if the user hasn't uploaded the sketch data using the "ESP8266-Sketch-Data-Uploader". Or the sketch data upload process has failed, therefor try uploading it again. But make sure you have the correct flash-size selected in the tools menu. For a Wemos D1 mini this has to be set to 4096kb, 1MB SPIFFS, 1MB OTA.Issues while compilingCompiling throws errorsUpdate all libraries to the newest versions (esp8266, FastLED, PubSubClient, ArduinoOTA)Sketch Data Upload does not workDownload the newest version of the ESP8266-FS plugin for the Arduino IDEThe Arduino IDE doesn't show the other files and says that files weren't foundThe Arduino IDE requires that the filename of the .ino file has the same name as the folder it is in, if the names do not match, then the .ino file will be moved into a new folder, to fix it move the file up to the other files and make sure the folder name is the same as the one of the fileSecrets.h file not foundCreate the Secrets.h file according to the instructionsIssues while uploadingThe Arduino doesn't boot when the LEDs are attachedThe LEDs might be wired in the wrong direction, the arrow must point away from the esp8266The Sketch-Data-Upload says "esptool.exe not found"Download the newest version of the ESP8266-FS plugin for the Arduino IDEIssues with the WebinterfaceThe website just shows "not found :/"Upload the sketch data again using the "ESP8266-Sketch-Data-Uploader" from the tools menuVerify your settings in the tools menuCheck if the upload process completes without any errorsThe website doesn't loadCheck if you have entered the correct IP-AddressMake sure you are in the same network as the deviceTry opening the serial monitor of the Arduino IDE and reset your board. The terminal should output something and indicate what is going onIssues with the LEDsThe LEDs flicker a lotYou might have bad soldering spotsTry to use a logic level shifter to shift the supplied data signal to 5VNot all of my LEDs turn onCheck if you have correct values for the variables that define the amount of LEDsCheck the wiring for errorsMy LEDs just light up whiteTry updating all libaries to the newest versions FAQCan I connect to the esp8266 from outside of my local network?Yes, you can do this by creating a port forwarding rule on your routerCan I use the NodeMCU for this project?Yes the software should work with every esp8266 based board. Make sure the correct pin is defined correctlyCan I use an esp32?The software doesn't support esp32, but jasoncoon wrote a esp32 edition but it just has basic functionalityCan I use other LED-Strip types for this project?Yes, any FastLED compatible LED-Strip can be usedTo use different LED-Strips change the LED_TYPE in the main config areaA list of all compatible LED-Strips can be found here.What power supply should I choose?100x 5V WS2812 LEDs draw around 3AWhat LED-Strip should I choose?I would recommend a WS2812B LED-Strip with 60LEDs/m

Baixar
