Suporte de Bobina Empilhavel Enclosed Parametrico
Acessórios para impressoras 3D
Se você ainda não tem uma máquina para imprimir este arquivo pode comprar uma impressora 3d aqui!
Você pode imprimir este modelo 3d com estes filamentos ou com estas resinas 3D.
Sobre o objeto 3D Suporte de Bobina Empilhavel Enclosed Parametrico
Este é um arquivo desenvolvido e projetado com ferramenta CAD.
Se você ainda não sabe criar seu próprio modelo 3D eu te ensino neste artigo tutorial sobre Tinkercad.

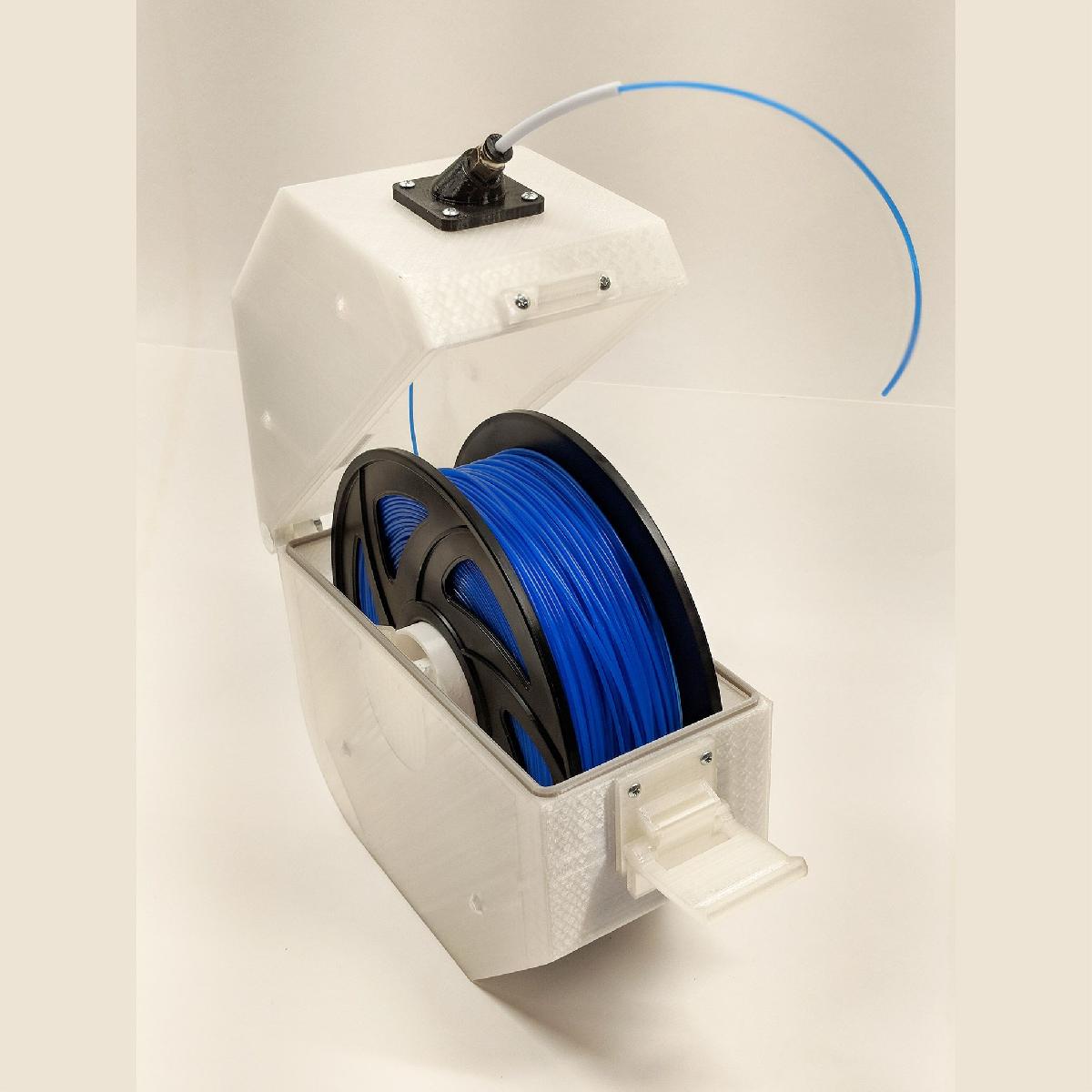

Suporte de Bobina Empilhavel Enclosed Parametrico foi projetado para Impressora 3D. Update 5/5/18: I am satisfied enough with the design and the fit that I consider this to be finished, which isn't to say I won't keep it updated if there are errors found or someone has a good suggestion.Update 5/9/18: I have recently designed another style of enclosed spool holder that doesn't use a central spool core - https://www.thingiverse.com/thing:2900930While inspired by the Spannerhands spool system, I wanted something a little different so I designed my own enclosed spool holder system.I designed this to be parametric and stackable/interlocking, usable in either a horizontal or vertical orientation, for which I designed the spool core with a lip on one side to assist with horizontal usability. And, there is a spot to stick your desiccant packets.Parts:Base and Lid - sized for 200 mm x 70 mm spool (customizable in .f3d file)Spool Core - sized for 54 mm inside spool diameter (customizable in .f3d file)TPU Seal - (size will auto update if customized)Spool Retaining Insert - optional, x2; for horizontal use (size will auto update if customized)Latch - print-in-place hinged latch or some-assembly-required latchPTFE Coupler - m6 or m10 threads (have also included a m10 swivel coupler)Bearing Mount - x2To customize the size of the spool holder, open the .f3d file in Fusion 360, Click on "Modify" and select "Change Parameters". You can easily change the following settings:SpoolDiameter (200 mm minimum, or the hinges mess up)SpoolWidthSpoolCoreDiameterSpoolCoreLipWallThicknessStandardOrMetricThen just re export the .stl files and print :)Necessary Hardware:m10 or m6 PTFE Coupling (your Preference/Availability)2x - 608 bearings4x - m3x12 button head screws if using the Some-Assembly-Required LatchPLUSDefault standard/imperial config (cheaper for me) -2x - 1/4-20 x 3/4in Machine Screw2x - 1/4-20 Nut10x - #4 x 3/8in Pan Head Sheet Metal ScrewsORAlternate metric config (customizable in .f3d file) - 2x - m6x20 Machine Screw2x - m6 Nut10x - m3x8 Screw (or m3x12 + m3 Nut)Updates:4/23/2018 - Initial Upload4/25/2018 - Changes to hinge setup, switched inside/outside hinges so bottom is on the inside and will support most of the weight if you want to use a wall mount with this. Added PTFE Couplers4/28/2018 - Decided to remove the interlocking portions on the top and bottom of the spool, they didn't work all that well and required supports for printing the base and lid (I may revisit this and try to come up with a better way). Also removed the fillets around the nodules on the side for stacking (works better in my opinion). Added swivel PTFE M10 coupler for easier use in any orientation (tolerances are pretty tight though).5/5/2018 - Reworked the Print in Place Latch to give a little looser tolerance for easier break free after printing and less chance of snapping the latch. Added a Some Assembly Required Latch which uses m3 screws instead of the printed plastic pins. Fixed error in Seal dimensions calculation, was being printed 0.4mm too tall/wide. Added small inset to hold nut used for hinge.5/8/2018 - Corrected some issues in the .f3d with improper constraints in the design causing glitches upon resizing5/21/2018 - Modified the PTFE Swivel Coupler to be easier to break free
