Motor a jato turbofan de baixo desvio

Engenharia

Se você ainda não tem uma máquina para imprimir este arquivo pode comprar uma impressora 3d aqui!

Você pode imprimir este modelo 3d com estes filamentos ou com estas resinas 3D.

Sobre o objeto 3D Motor a jato turbofan de baixo desvio

Este é um arquivo desenvolvido e projetado com ferramenta CAD.

Se você ainda não sabe criar seu próprio modelo 3D eu te ensino neste artigo tutorial sobre Tinkercad.

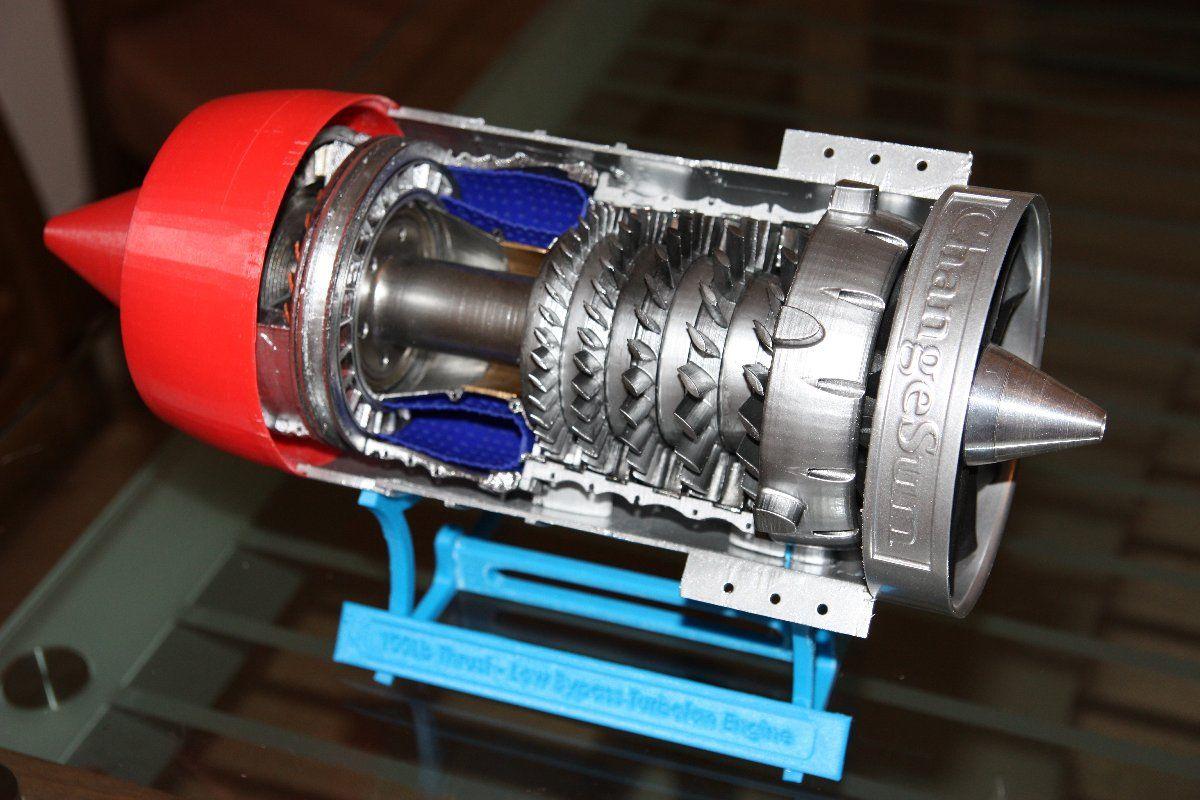

Motor a jato turbofan de baixo desvio foi projetado para Impressora 3D. xxxxxxRevision 1 (file Rev_1.zip) see second pictureadded combustion liner (Single Annular Can), fuel nozzles and turbine stand (in three pieces)xxxxxx This is a first step study around a working 50 Kg thrust engine, a simplified model aimed to study the assembly sequences, volumes and components' layout in general. Once completed it will sit on my desk as a display model and the second design phase will include the theoretical studies outputs.In order to decrease the complexity of the model you'll notice some conceptual mistakes (such as the bearings directly mounted on hot components like the HP and LP nozzles, compressor disks shapes and approximate aerodynamic profiles) but besides that, the model is created reflecting the actual design of the full size/working engines.The combustion chamber and fuel injectors are missing, they will be included in the rev. 1. If you'd like to build this thing you need the following items. I got them from e-bay and/or hobbyking.com Bearings:LP rotor: #2 688zzHP rotor #1 6705zz, #1 6810zz Hardware:LP shaft: threaded rod M8 L=2206 Metal push rod M3x300 (from hobbyking)M2x6M2x8M2x10M2.5x10epoxy glue LP Fan:12 Blade High-Performance 120mm EDF Ducted Fan Unit (from hobbyking) Tools:sand paperfilesdrill bits (1.5 , 2 , 2.5 and 3mm) or reamershobby woodcraft lathe (optional) I printed all the big items at medium resolution (0.25), 10% infill and wall thickness set to 2 shells. Complex and small items like statoric vanes an compressor disks were printed at high res. (0.15) For the compressor rotor assembly you need to cut the M3 Push Rods to the right length and weld (I used an electric welding solder) an M3 nut at the not threaded end. For the external shell I used the ducted fan shroud (see picture). The gap between the modified fan shroud and the right turbine length has been filled with the printed component "€œExternal can.stl".€ Printed parts have been painted with glossy black as base coat and finished with lacquer metalizer. All the printed parts require sanding, filing and reaming in order to correctly mate and allow the rotors to spin with no interference. A small lathe would help. Pictures of the completed model, along with assembly instructions will follow.
