Motor a ar V twin (modular)
Brinquedos Mecânicos
Se você ainda não tem uma máquina para imprimir este arquivo pode comprar uma impressora 3d aqui!
Você pode imprimir este modelo 3d com estes filamentos ou com estas resinas 3D.
Sobre o objeto 3D Motor a ar V twin (modular)
Este é um arquivo desenvolvido e projetado com ferramenta CAD.
Se você ainda não sabe criar seu próprio modelo 3D eu te ensino neste artigo tutorial sobre Tinkercad.

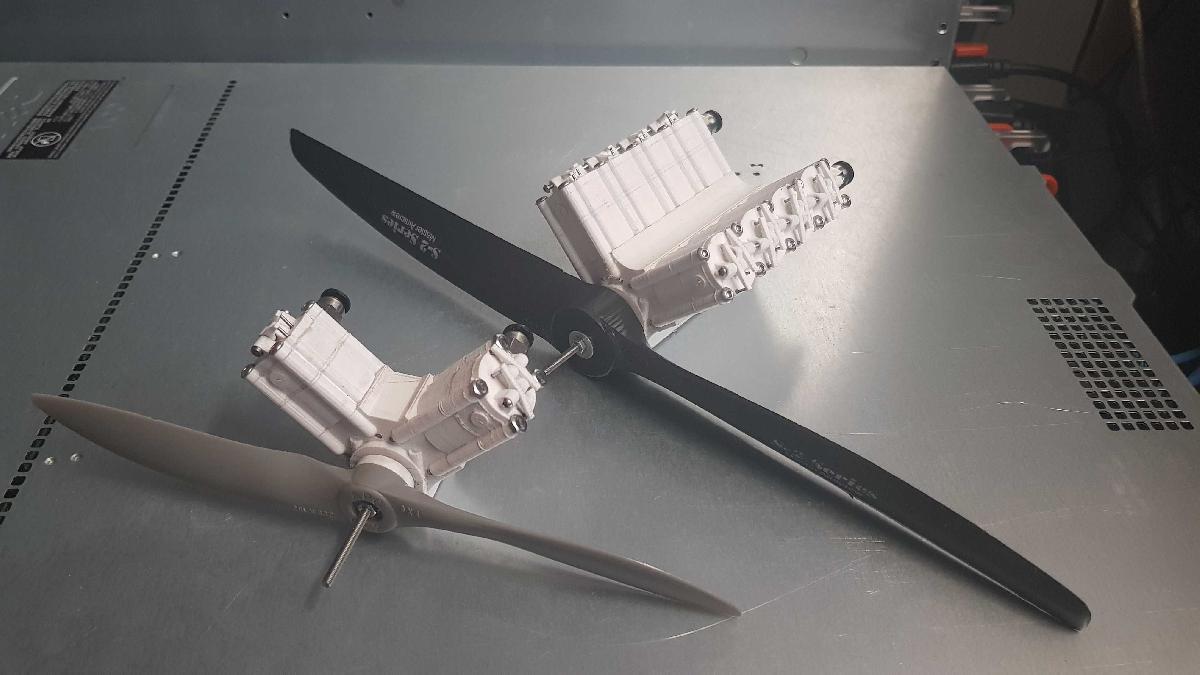

Motor a ar V twin (modular) foi projetado para Impressora 3D. I had a couple of people asking me to make a v8 out of my earlier designs but i wanted to make a dual valve head anyway, so i made a new design.This engine can be run as a single or a v configuration. All parts can be tacked to make an inline 1-many or a vtwin, v4, v6, v8, v10 and then you'll propably have to much crankshaft flex :PI've made the v-twin version, it runs really nice and is a lot more efficient then my earlier designs. Who's going to be the first to make a v8? :)Parts..Plastic...m3x35 bolt for the cylindersm3x20 bolts vor the crankcasesm2x10 bolts for the tumplers and pistons2mm rod for the crank and cam follower1mm rod vor the valves and pushrods.m3-someting for the crank6x15x5 mm (inner/outer/thickness) ball bearings for the crank.(2 per v-twin) (https://www.ebay.nl/itm/10pcs-696ZZ-6x15x5mm-Ball-Bearings-Double-Shielded-Miniature-Ball-Bearing/142842244270)2x5x2 mm bearings for the conrods and cam follower. (4 per cylinder) (https://www.ebay.nl/itm/50-PCS-MR52-2x5x2-mm-Metal-OPEN-PRECISION-Ball-Bearing-Bearings-2-5-2/293024611048)some springs, 2mm dia, 0,5mm wire, 10mm lengthrubber rings, 3x5mm (https://www.ebay.nl/itm/3mm-ID-x-1mm-C-S-Viton-O-Ring-3x1-Choose-Quantity-New-Metric/293044595264)I you like it, print it and send some pics ;)https://www.youtube.com/watch?v=emkxdtF3ESQhttps://www.youtube.com/watch?v=r_6XyVa7E3Yhttps://www.youtube.com/watch?v=oxn2261HfxMhttps://www.youtube.com/watch?v=UDGmdwDn6xMTo-do.change the head design to get the rods for the tumblers inline for multi cylinder use.tips:rotate the tubmler 11,4 degrees to get it flat on the printbed.Most parts are rotated 45 degrees.2019-05-20 Updated head design2019-06-08 Changed cylinder for an easier fit and the crankcases had a minor fault2019-06-10 Changed piston to fit easier and crank lobes to fit a hex nut2019-06-15 updated head_base, it's 0,5mm thicker. the rods you need are now 40mm and 12mm (bottom valve to tip=10mm, so its sticking out 2mm to keep the valve spring in place.)2018-06-22 updated crankcase, camfollower, and vinished the v8 :)
