Lanterna Bosch 12V com cabeca ajustavel

Ferramentas

Se você ainda não tem uma máquina para imprimir este arquivo pode comprar uma impressora 3d aqui!

Você pode imprimir este modelo 3d com estes filamentos ou com estas resinas 3D.

Sobre o objeto 3D Lanterna Bosch 12V com cabeca ajustavel

Este é um arquivo desenvolvido e projetado com ferramenta CAD.

Se você ainda não sabe criar seu próprio modelo 3D eu te ensino neste artigo tutorial sobre Tinkercad.

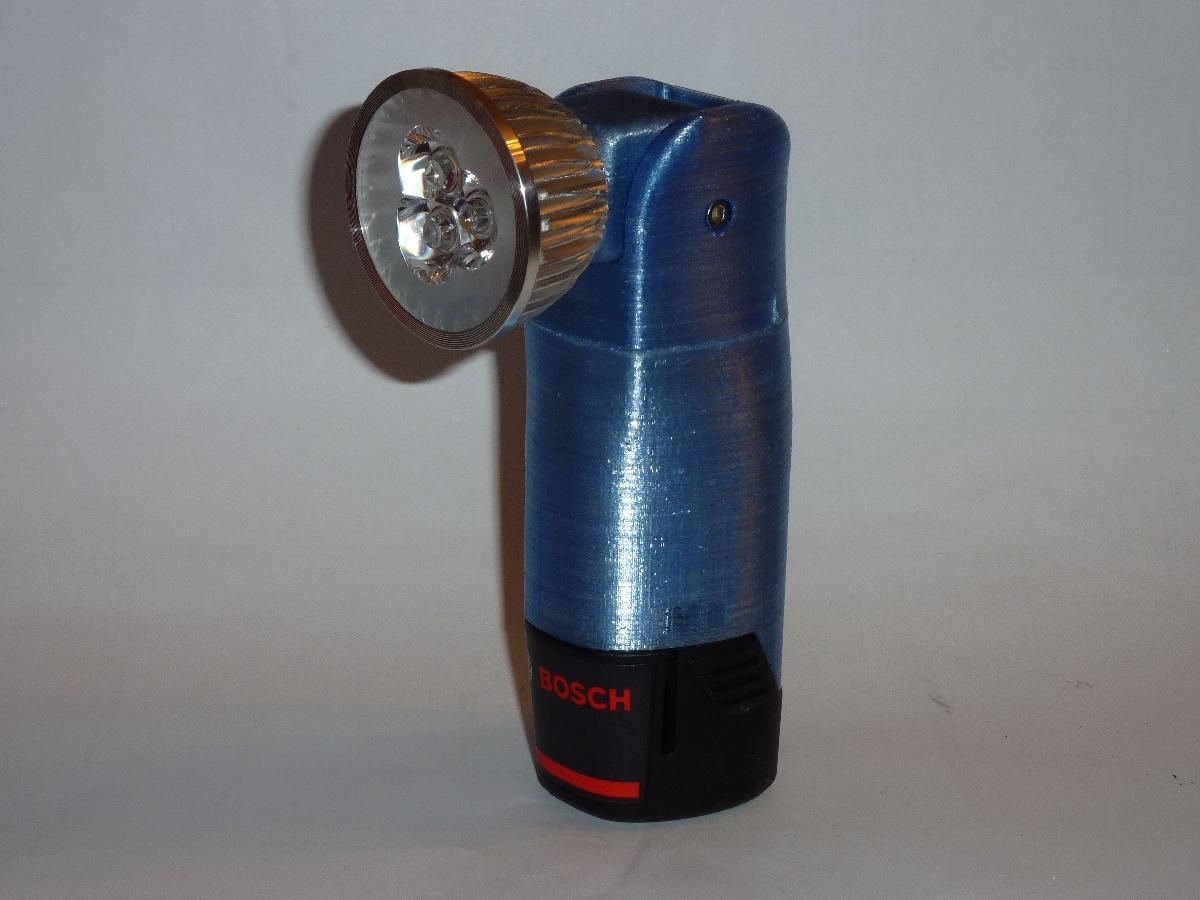

Lanterna Bosch 12V com cabeca ajustavel foi projetado para Impressora 3D. This is a remix of my Milwaukee M12 system flashlight adjusted to Bosch 12V system battery. It has a head with an adjustable angle, made from MR16 led bulb.BOMTo assembly it, you will need:3d printed lamp head.3d printed upper piece of the body.3d printed lower piece of the body.3-5W MR16 led bulb with a radiator with M28x1 thread (see photos)2x 8mm length M3 screw3x 16mm length M3 screw2 pieces of 6.3mm spade male connectors1 piece of 21x15mm rocker on/off switch10cm of 2-wire cablesoldering ironNotesAssembly process is very similar to Milwakuee version so check it to see all assembly steps. I had to bend rocker switch connectors as the switch cavity is a few millimeters shorter than in Milwaukee version.Please note, that the battery direction is opposite to the one used in other Bosch tools. I did it that way so the switch can be placed closer to the battery and the whole flashlight is shorter. It shouldn't matter in practice.My led bulb uses almost 5 Watts and gets really hot (over 60°C) so printing lamp head with plain PLA 3D Fila may be not enough. I used PETG XT 3D Fila and it is holding ok. PLA 3D Fila could be probably used after "baking".There seems to be a lot of MR16 led bulbs with M28x1 thread on aliexpress. I checked MR16 bulb from this page and it fits the thread perfectly. Bear in mind that power of those bulb is greatly exaggerated, 9W bulb in reality draws around 3W.
