Embarcacao de trabalho com parafuso unico

Veículos R/C

Se você ainda não tem uma máquina para imprimir este arquivo pode comprar uma impressora 3d aqui!

Embarcacao de trabalho com parafuso unico Curso 3D Curso 3D

Você pode imprimir este modelo 3d com estes filamentos ou com estas resinas 3D.

Sobre o objeto 3D Embarcacao de trabalho com parafuso unico

Este é um arquivo desenvolvido e projetado com ferramenta CAD.

Se você ainda não sabe criar seu próprio modelo 3D eu te ensino neste artigo tutorial sobre Tinkercad.

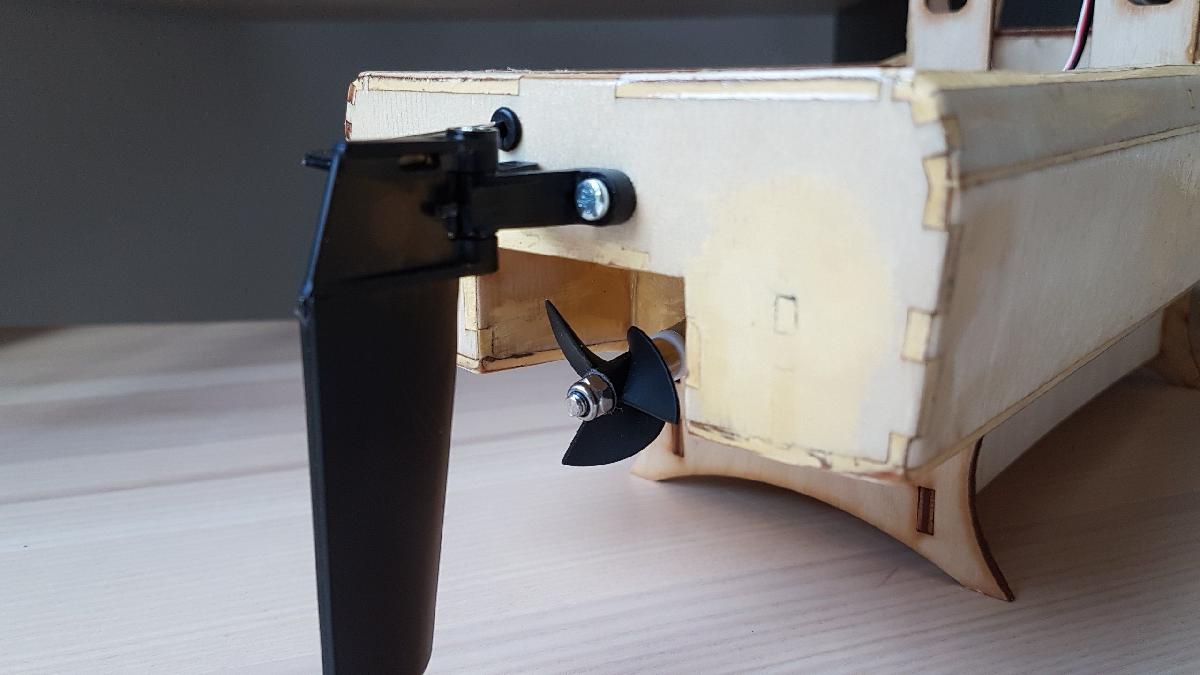

Embarcacao de trabalho com parafuso unico foi projetado para Impressora 3D. This project is stopped and won't be developed. There is a critical error in design: screw is too high and at higher rpms generate more buzz than thurst. Boat is too small to make it go deeper so if you'll develop it further, either screw deeper or boat a little higher is it could go a little deeper without a a risk to sink.2017 07 23: applied putty twice, painted twice (not sure if it was worth doing so) and applied yacht lacquer. Buoyancy seems just fine, 2,5 kg is a the limit. Hopefully, all the components will be lighter.2017 07 20: bottom part is glued and it's a nightmare. Especially the front end. Next on the to do list is a lot of grinding, applying putty, polishing and eventually some adequate water insulation. Haven't decided on that yet should I stick to marine lacquer or glass fiber with epoxy. Anyhow, it's nice thing to make, but not suitable for mass production. Ok, this is just a very start and it's not ready for sure. All credtis go to Lewis, I just used his work and modified in my way. Since I'm not a big fan of glueing, a lot is done by interlocking parts therefore ir you will use any other thickness of plywood than 3 mm, you will have some issues. So use at your own risk. Up to now some tricks and hints: for sides - soak them in watter for 20 minutes before bending. Also mind patern of the tree as one way it bends, other - breaks. Components, intended to be used for this boat:RX/TX:https://www.aliexpress.com/item/Original-High-Quality-GoolRC-TG3-2-4GHz-3CH-Digital-Radio-Remote-Control-Transmitter-with-Receiver-for/32701262620.html?spm=a2g0s.9042311.0.0.0zuk3rSteering rudder:https://www.aliexpress.com/item/Original-Feilun-FT009-7-Feilun-Steering-Rudder-Spare-Part-for-Feilun-FT009-RC-Boat/32795487051.html?spm=a2g0s.9042311.0.0.0zuk3rServo for steering:https://www.aliexpress.com/item/Professional-RC-Car-Spare-Part-Robot-Servo-S3003-Boat-Plane-Vehicle-Power-Standard-Servo-SUV-Steering/32793163584.html?spm=a2g0s.9042311.0.0.0zuk3rBrushed motor with 4 x 100 mm shaft and screw:https://www.aliexpress.com/item/Free-Shipping-380-boat-motor-with-shaft-Propeller-kit-shaft-assembly-spare-parts-for-DIY-RC/32742987290.html?spm=a2g0s.9042311.0.0.0zuk3rESC:https://www.aliexpress.com/item/1pcs-Original-Hobbywing-Eagle-20A-ESC-For-Brushed-Motor-For-RC-Airplane-Plane-370-380-390/32371909564.html?spm=a2g0s.9042311.0.0.0zuk3rBatteries:https://www.aliexpress.com/item/4pcs-lot-EAIEP-100-2100mAh-3-7V-li-Ion-ICR18650-21F-Rechargeable-18650-Batteries-mobile-power/32807481704.html?spm=a2g0s.9042311.0.0.0zuk3rBattery box:https://www.aliexpress.com/item/2017-free-shipping-hot-sale-Plastic-Battery-Storage-Case-Box-Holder-For-3-x-18650-Black/32811468125.html?spm=a2g0s.9042311.0.0.0zuk3rI'm new to RC things to if you have advices you are more than welcome to advise me.Water test:https://www.youtube.com/watch?v=LTYMsZwYI_g
