Eixo Z duplo CR 10 com motor de passo unico. Baixo custo, alta precisao.

Acessórios para impressoras 3D

Se você ainda não tem uma máquina para imprimir este arquivo pode comprar uma impressora 3d aqui!

Você pode imprimir este modelo 3d com estes filamentos ou com estas resinas 3D.

Sobre o objeto 3D Eixo Z duplo CR 10 com motor de passo unico. Baixo custo, alta precisao.

Este é um arquivo desenvolvido e projetado com ferramenta CAD.

Se você ainda não sabe criar seu próprio modelo 3D eu te ensino neste artigo tutorial sobre Tinkercad.

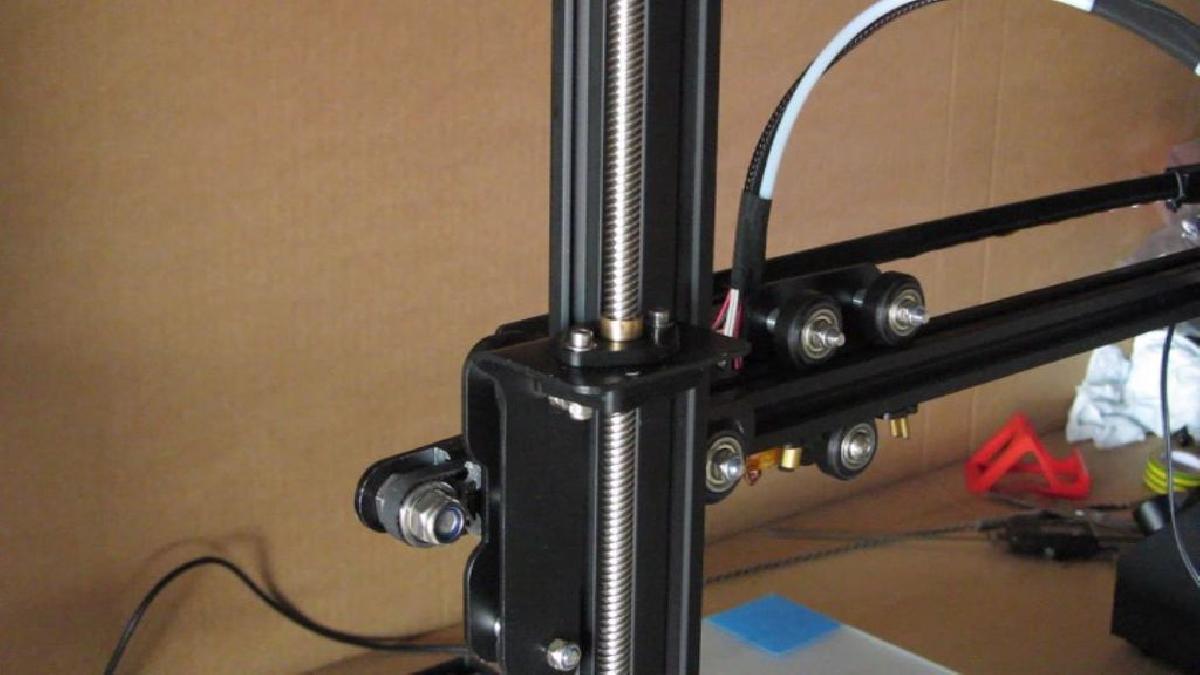

Eixo Z duplo CR 10 com motor de passo unico. Baixo custo, alta precisao. foi projetado para Impressora 3D. The CR10 has a single Z axis leadscrew and I have no issue with this it really produces superb prints. From an engineering point of view a better idea would be to have a leadscrew at both ends. There is an upgrade kit available which uses a second stepper motor but I understand these can get out of sync when power is switched off and on and the bed must be re leveled every time.My solution links the screws with a toothed belt and is driven by the existing single stepper. It cannot get out of sync.All the parts cost less that £12.00 ( US $16.00) including delivery!There is a bit of metalwork involved but you only need a saw. file and drill. If you really cannot do metalwork I have designed a printed bracket with the same dimensions. Be warned though this has not been tried out but it should be OK.Parts needed include600mm leadscrew and nut https://goo.gl/fM8znLGT2 Aluminum timing belt pulley 36 teeth 8mm bore ( 2 required)http://bit.ly/2DXpmchGT2 852mm Timing Belt: https://goo.gl/iXa4sv ( be sure to get the correct length)Flexible Shaft Coupling: https://goo.gl/qfUhEeBearings: https://goo.gl/HnzTqrVideo https://youtu.be/-ASBhJiU8NIInstructions http://myfordboy.blogspot.co.uk/p/the-cr10-has-single-z-axis-leadscrew.htmlBeware of ordering the leadscrew form other than the link given. There are 2 forms of 8mm leadscrew available.One is a 4 start thread that gives a 8mm travel for one turn, the other is single start that would move the nut 2mm per turn.The details are not given very clearly on some sites. I made the mistake and ordered the wrong one to start with.UPDATESome people have said the printed bracket fits and others say the fixing holes are too close together. I have uploaded another file which has a slot so should fit OK.
