Sobre o objeto 3D Detector de fumaca Desligamento de seguranca da impressora

Este é um arquivo desenvolvido e projetado com ferramenta CAD.

Se você ainda não sabe criar seu próprio modelo 3D eu te ensino neste artigo tutorial sobre Tinkercad.

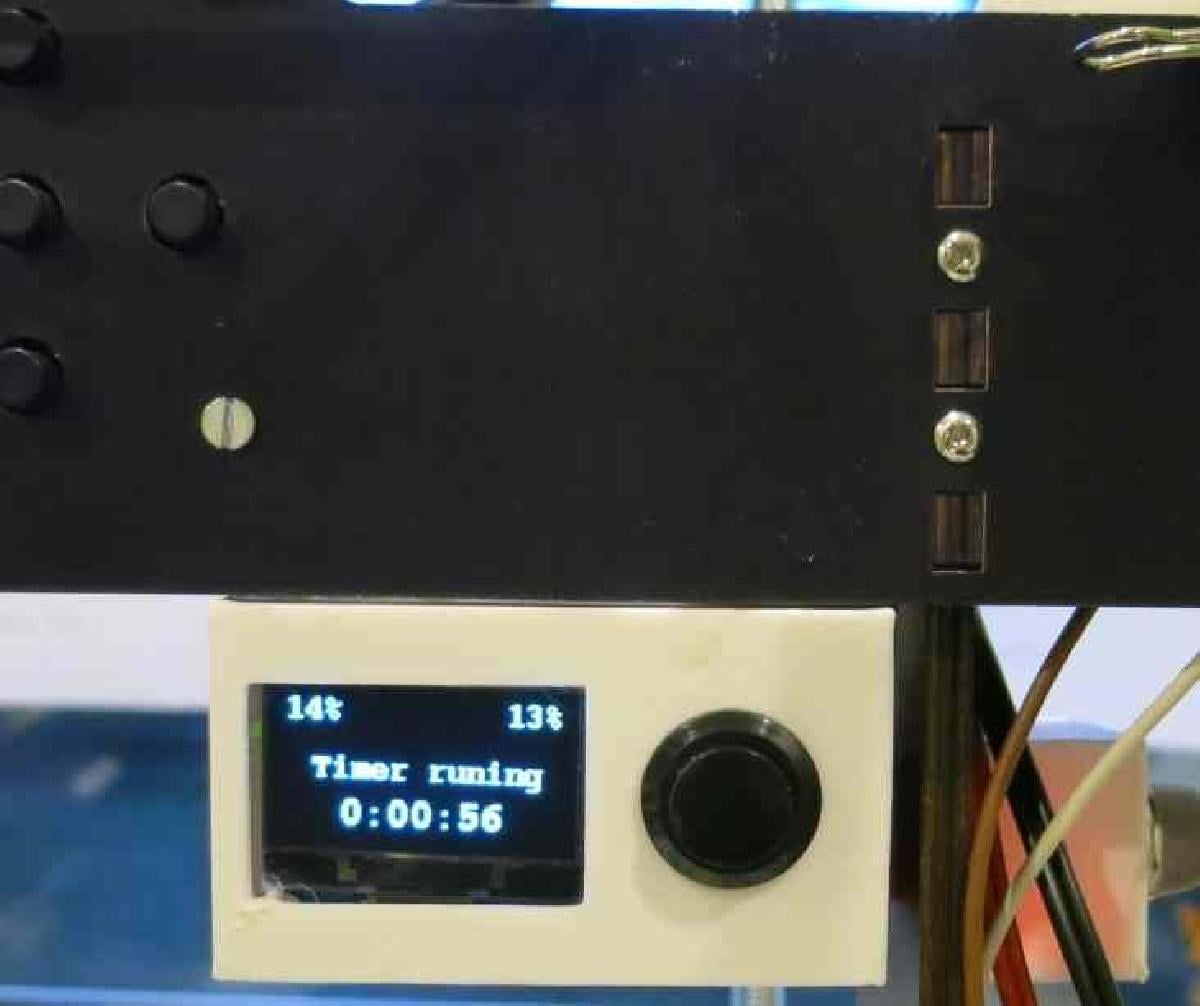

Detector de fumaca Desligamento de seguranca da impressora foi projetado para Impressora 3D. This is a project for every printer and every printer should have it. Also this here is more about the project then for the printing parts.I read some stories the printer burns down or the electric burned out. To try to avoid a bigger damage as the printers most of the time are inaction without supervision, it's just a question of security to have a smoke detector on it.This version is low cost and not too difficult to build - even for beginners.Of course there are many stuff on it what can get improved (electric and programming). This was just a quick project, but it still works fine.What does it do:there are smoke detectors on two side (ANET A8). One for the power supply and the other for the electric main partsif one of these detects smoke it cuts of the main power supply with a relay.the 9V battery keeps the detectors and the display running and shows an alarm.there is also a stopwatch on it for personal use as you want (measure the time of printing for example).to reset an alarm, you need to reset the complete detectorWhat do you need:1 Arduino (I used an Arduino Nano)2 smoke detectors MQ02 (with analog out -> 4 pins)1 dual-relay or two single relays for Arduino (5V)1 DC-DC converter 12V to 5V or adjustable1 OLED-Display 128x64 I2C (I used a 1.3" OLED-Display)1 cheap simple ordinary Diode (I used a N4005 - as I have them at home)1 push-button1 battery between 7V and 24V (I used a 9V block battery)breadboard for solderingfew cablessoldering ironMini-USB cableArduino studio (https://www.arduino.cc/en/Main/Software)Noteif you turn it on after a long off time, it can happen your detectors will detect a high percentage of smoke and go on Alarm and after slowly down. That’s not your fault if it happens. just wait until it is under 40% and reset the detector/Arduinoit's easily possible to add a siren on it - you can use the main power by using the other contactor of the relay or add another output inside the software
