Sobre o objeto 3D Cortador de grama robo

Este é um arquivo desenvolvido e projetado com ferramenta CAD.

Se você ainda não sabe criar seu próprio modelo 3D eu te ensino neste artigo tutorial sobre Tinkercad.

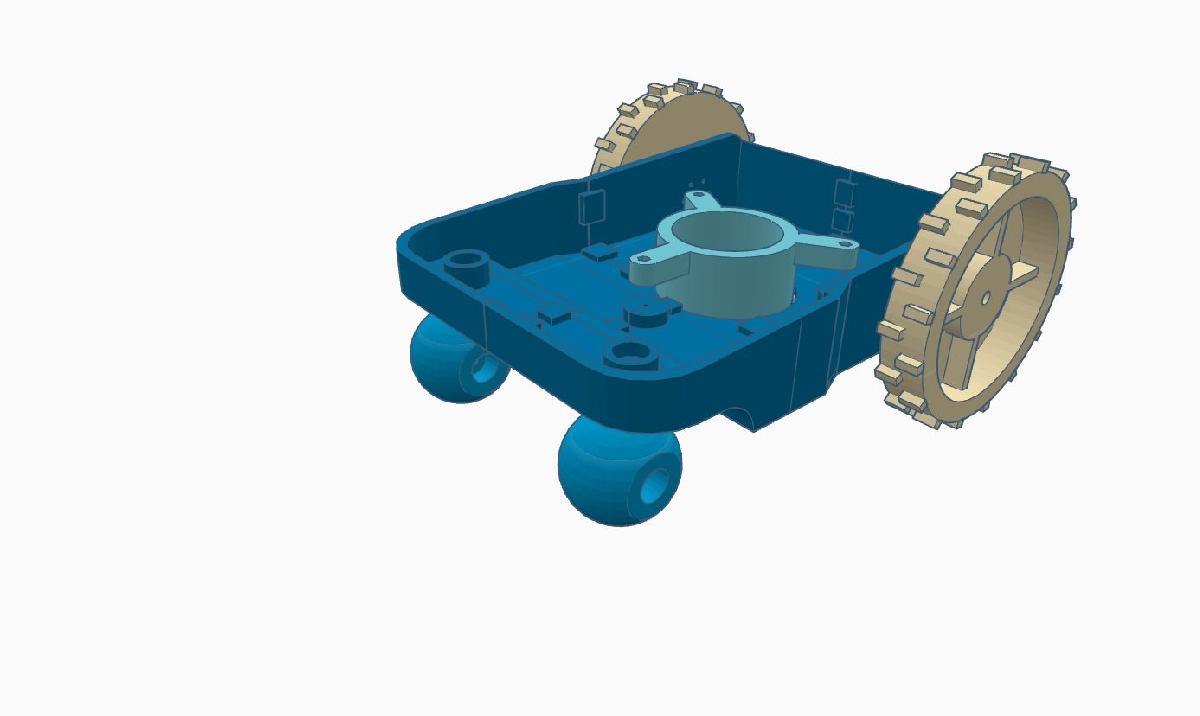

Cortador de grama robo foi projetado para Impressora 3D. This is a custom desgin robot cutter with adjustable cut height, the height adjusts bytightening the 3 screw under the chassie.As for a lide I am going to use a polycarbonate sheet to make sure that it's really watertight.In each front wheel fits 2 rollerskatesbearings, on from each side.And also the chassie fits 4 rollerbladebearing, 2 from above and 2 from beneth.Each wheel mount to the chassie with a m8 rod with 2 nuts one for each side of the wheel and 2 nuts in the chassie one from above and one from beneth clamping the 2 bearing together.The cutterbracket is made to fit a nidec 22, the bracket is supposed to be mounted with 3 m5 screws and nuts with a spring in between.The drivewheel fits on a diy wheelhub made from a m10 screw.When I made this for myself I noticed a couple of misses I made with this design, for example the inserthole for the frontright bearing was to small. All of the misses I foundis fixed in this version I upload. If you find any more misses, feel free to contact me and I will fix them.The electronics and software is custom made by the facebookgroup "diy robot lawn mower" founded by Jonas Forssell.
