Sobre o objeto 3D Contador de voltas Medicao do melhor tempo
Este é um arquivo desenvolvido e projetado com ferramenta CAD.
Se você ainda não sabe criar seu próprio modelo 3D eu te ensino neste artigo tutorial sobre Tinkercad.

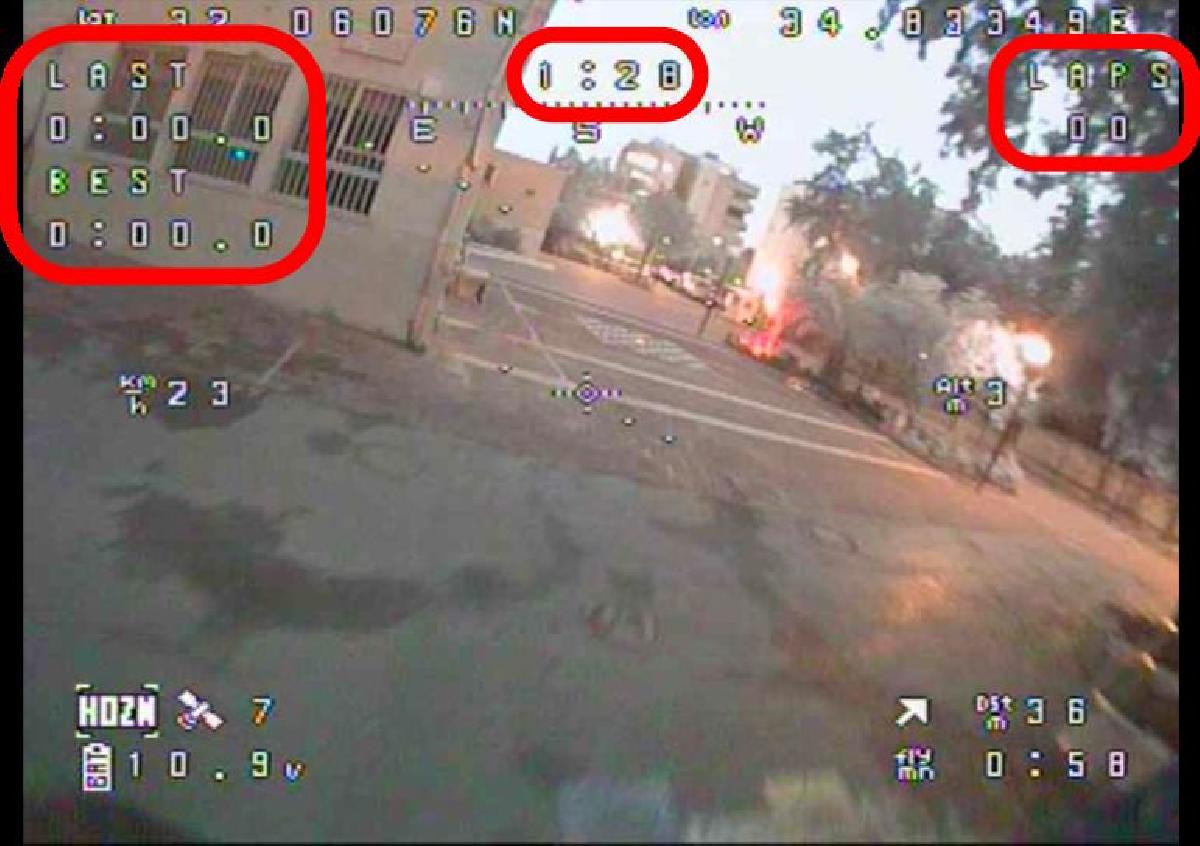

Contador de voltas Medicao do melhor tempo foi projetado para Impressora 3D. Update: 14 mai 2016Removed: LapCounter.cpp.eightanaloginputs.hexBug in best lapAdded: 4 hex files1.LapCounterV1.1.hex, best lap bug fixed2.LapCounterCrossV1.1.hex, added a Cross on the center of the screen3.LapCounterVbatV1.1.hex, added Vbat, need to connect, on microMinimosd, VBAT1 to battery.4.LapCounterVbat&CrossV1.1.hex, added both VBAT & CrossLa version Francaise est apres la version anglaise....In EnglishI made a Lap Counter for FPV Racing, Quads, Drones etc....https://www.youtube.com/watch?v=R5Q2Uxe8nso@ the bottom, there is a Shopping list from ebayWhat you need:Transponder (on the Racer):minimosd (or similar)VS1838 (or similar)1x Resistor 20KOhm1x Resistor 100Ohm1x Capacitor 0.1uF1x Capacitor 47uFGate Led Driver(On the Start/Finish Line):Arduino pro mini (or similar, minimosd is a similar)Bec 5Vand Connectors of your choicei choosed Simple Female Header:http://www.ebay.com/sch/i.html?_odkw=header+2+row&_osacat=0&_from=R40&_trksid=p2045573.m570.l1313.TR0.TRC0.H0.Xheader+2+row+female.TRS0&_nkw=header+2+row+female&_sacat=0Gate Leds (the IR leds that comes on the Printed part):You need to print the GatesLeds.stl as many you want the gate to be.itch part are 15cm long, so if you want a 3m gate, you need to print 20 parts.for itch part:1x Resistor 50~40Ohm3x IR Leds1x transistor (Mosfet or BJT not matter) i used: 2N7002 or 2N70001x Female Connector (like the one you chose for the GateLedDriver).1x Male Connector (like the one you chose for the GateLedDriver but a male this time).Leds Holder Limiter (so when you pass over the gate you know where it start and where it ends)You need to print the LedsHolderLimiter.STL x2 (1 near the driver and 1 after the last segment.)strip led of the color of your choice.1x Female Connector (like the one you chose for the GateLedDriver).1x Male Connector (like the one you chose for the GateLedDriver but a male this time).You need to assembly those 3 circuit by the drawings....for flashing the transponder and the GateLedDriver you will need a program named: XLoader flash on the minimosd that you use as transponder, the file name:LapCounter.cpp.eightanaloginputs.hexflash on the minimosd/Arduino mini pro that you use as GateLedDriver, the file name:GateLedDriver.cpp.eightanaloginputs.hexEnjoy :)En FrancaisJ'ai fait un System de Mesure de meilleur temps pour le FPV Racing, Quads, Drones etc...https://www.youtube.com/watch?v=R5Q2Uxe8nsoCe dont vous avez besoin:Transpondeur (Sur le Racer):minimosd (ou similaire)VS1838 (ou similaire)1x Resistor 20KOhm1x Resistor 100Ohm1x Condensateur 0.1uF1x Condensateur 47uFGate Led Driver(La Ligne De Depart/Arrivee):Arduino pro mini (ou similaire, minimosd est similaire)Bec 5VEt un Connecteur de votre choix.Moi J'ai choisie un Simple Header Femelle:http://www.ebay.com/sch/i.html?_odkw=header+2+row&_osacat=0&_from=R40&_trksid=p2045573.m570.l1313.TR0.TRC0.H0.Xheader+2+row+female.TRS0&_nkw=header+2+row+female&_sacat=0Gate Leds (Les Leds IR qui vont sur la piece imprimer):Vous devez imprimer la piece "GatesLeds.stl" au temp que vous voulez.Chaque piece fais 15cm.par exemple: si vous voulez un Gate de 3 metres de long il vous faut 20 pieces.pour chaque piece il vous faut:1x Resistor 50~40Ohm3x IR Leds1x transistor (Mosfet ou BJT aucune importance) moi je me suis servi de: 2N7002 or 2N70001x Connecteur Femelle(comme celui que vous vous etes servi dans GateLedDriver).1x Connecteur Male(comme celui que vous vous etes servi dans GateLedDriver mais cette fois un male).Leds Holder Limiter (pour savoir ou commence et ou ce termine le Gate quand vous passer au dessus)-Vous devez imprimer la piece "LedsHolderLimiter.STL" fois 2 (un pour la droite et un pour la gauche du Gate.)strip led de la couleur de votre choix (ou ce que vous avez dans le tiroir)1x Connecteur Femelle(comme celui que vous vous etes servi dans GateLedDriver).1x Connecteur Male(comme celui que vous vous etes servi dans GateLedDriver mais cette fois un male).Vous devez assembler les 3 circuit par rapport au schemas...pour flasher les Transpondeurs et le GateLedDriver, il vous faut un program intituler: XLoader Flasher le minimosd qui vous sert de Transpondeur avec le fichier intituler:LapCounter.cpp.eightanaloginputs.hexFlasher le Arduino pro mini/minimosd qui vous sert de GateLedDriver avec le fichier intituler:GateLedDriver.cpp.eightanaloginputs.hexEnjoy :)Ebay shopping list:(is only a guiding list you can chose different parts if you know what you are doing :) )51Ohm * 100pcs (pcs = Pieces) $1.45http://www.ebay.com/itm/100PCS-1-4W-Watt-51-ohm-51R-Metal-Film-Resistor-0-25W-1-RoHS-/291634343330?hash=item43e6c2eda2:g:ugQAAOSw8-tWZnGULedIR * 100pcs GBP1.11http://www.ebay.com/itm/100pcs-3mm-IR-infrared-LED-940nm-Lamp-High-Power-NEW-/191740681918?hash=item2ca4a29ebe:g:SMkAAOSwLzdWS-j32N7000 * 100pcs $2.70http://www.ebay.com/itm/100PCS-MOSFET-Transistor-CHANGJIANG-TO-92-2N7000-/361426794675?hash=item5426b738b3:g:Bn0AAOSwo0JWJ1A020KOhm * 100pcs $1.57http://www.ebay.com/itm/100pcs-1-4w-Watt-20K-ohm-20Kohm-Metal-Film-Resistor-0-25W-200000R-1-/191674193099?hash=item2ca0ac14cb:m:ms2PfsBTEQySSvkNxStrXSQ100Ohm * 100pcs $1.39http://www.ebay.com/itm/100-ohm-1-4w-Metal-Film-Resistor-Watt-0-25W-1-100-OHM-100-pcs-/351008880087?hash=item51b9c275d7:g:xCkAAOxyB0VRxpXU0.1uF * 100pcs $1.14http://www.ebay.com/itm/100pcs-0-1uF-104-50V-Monolithic-Ceramic-Chip-Capacitor-TOP-/311123743343?hash=item48706b926f:g:21wAAOSw8cNUNQm-47uF * 100pcs $1.80http://www.ebay.com/itm/100PCS-Electrolytic-Capacitor-105-SIZE-5-7mm-47UF16V-16V47UF-/401046113226?hash=item5d60360bca:g:ENoAAOSwJcZWeBwbVS1838 * 10pcs EUR 1.00http://www.ebay.com/itm/10PCS-VS1838-VS1838B-TL1838-1838-Infrared-Receiver-Head-Universal-IR-Receiver-/381599528833?hash=item58d91ab781:g:BR0AAOSwq19XDFUfHeader Connector 2x3 Female * 20pcs $1.85http://www.ebay.com/itm/20PCS-2X3-Pin-6P-2-54mm-Double-Row-Female-Straight-Header-Pin-Strip-2-3p-/181847275959?hash=item2a56f139b7:g:Xx4AAOSwpDdVVBqoHeader Connector 2x40 male * 5pcs $2.99http://www.ebay.com/itm/5-Header-80-Pin-Square-Solder-Tail-Gold-Plated-Male-Straight-Connector-2-Row-/200969636637?hash=item2ecab94b1d:g:1gMAAOxyFXhSNXFQ
