Caixa Resistor [empilhavel & personalizavel]

Eletrônica

Se você ainda não tem uma máquina para imprimir este arquivo pode comprar uma impressora 3d aqui!

Você pode imprimir este modelo 3d com estes filamentos ou com estas resinas 3D.

Sobre o objeto 3D Caixa Resistor [empilhavel & personalizavel]

Este é um arquivo desenvolvido e projetado com ferramenta CAD.

Se você ainda não sabe criar seu próprio modelo 3D eu te ensino neste artigo tutorial sobre Tinkercad.

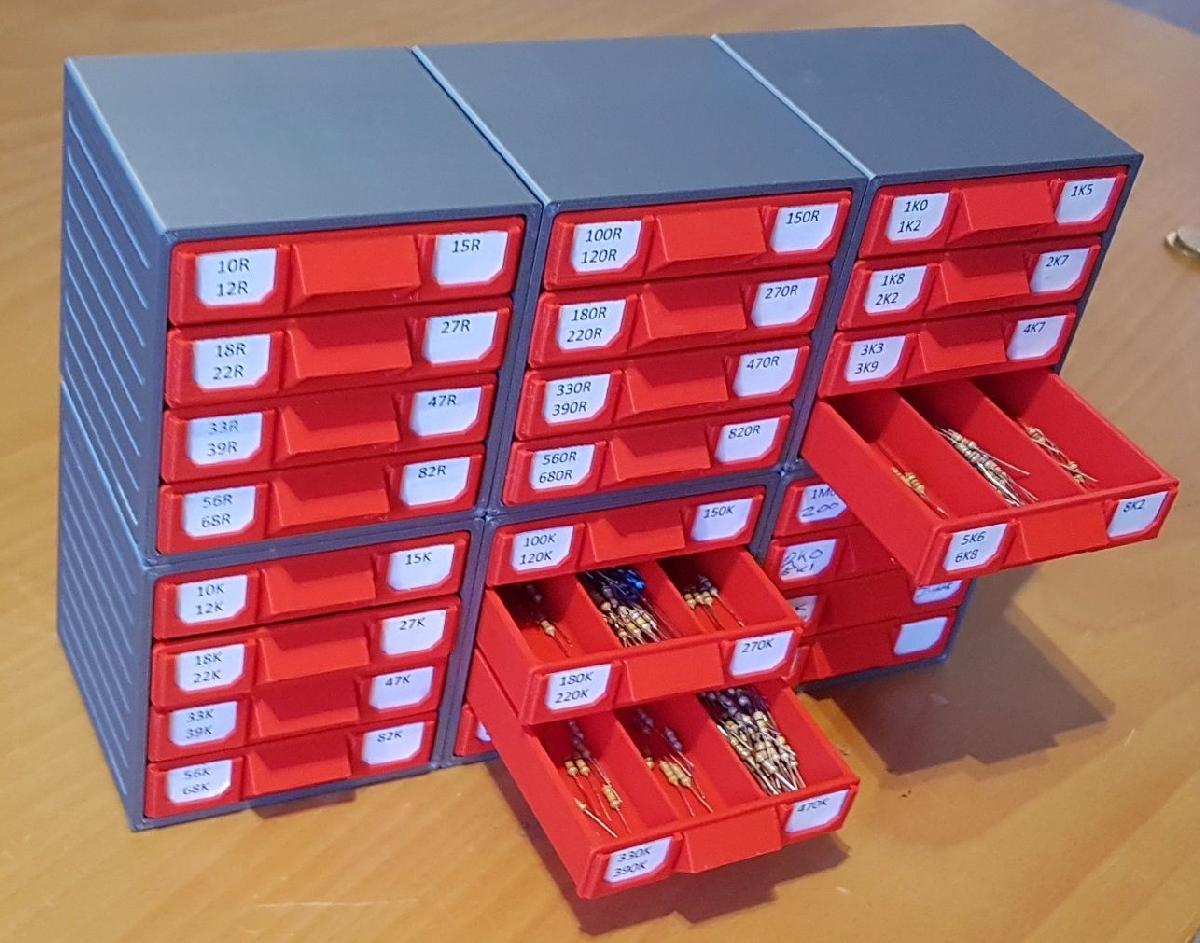

Caixa Resistor [empilhavel & personalizavel] foi projetado para Impressora 3D. Organize and store your resistors in this neat stackable drawer box. Each drawer had 3 compartments with a length of 6 cm (2.45 inch) that are fit for standard trough-hole resistors. You can stack as many boxes as you need using the connectors. The drawers will not fall out if you open them.Everything is easy to print, without supports, although to make it fit nicely you need a decent printer, and the standard handle on the drawers expect some 'bridging' from your printer (turn part cooling fan on for PLA 3D Fila). The Thin Handle does not require bridging.It was specifically designed to be printed at layer height of 0.2 mm, and layer width of 0.48 mm (standard for 0.4mm nozzles). Although it will probably print OK in other settings.I also included a word-document that you can print, containing labels of the correct sizes for the E-12 resistor values from 10 Ohm to 1 M-Ohm. Feel free to edit them :)A glue stick is suggested for keeping the labels in place, although it is not strictly necessary. For stacking, you need to print the right versions of the boxes. The names of the STL files should speak for themselves and tell you where in the array that box will fit. If you are unsure about the final stacking, consider using BoxMiddleMiddle.stl, this can connect on all sides.Need to refill your resistor boxes? https://www.banggood.com/custlink/DKDKZi0yE9orhttps://www.banggood.com/custlink/m3GhaHvGWpMany thanks for these user created contributions:Big expansion pack with various boxes and more: https://www.thingiverse.com/thing:3873672 (by termlimit)Extended resistor value labels: https://drive.google.com/file/d/1-vT3-qBiB0uqimmxt45ho5Z8fbF7_hk-/view (by benawhite)Drawer with 2 compartments: https://www.thingiverse.com/thing:3409863Drawer with 4 compartments: https://www.thingiverse.com/thing:3406151Drawer with 6 compartments: https://www.thingiverse.com/thing:3461663Box with 8 drawers: https://www.thingiverse.com/thing:3187612Extra tolerant connector: https://www.thingiverse.com/asset:141144 (by penright14)Electro Box, multiple sizes: https://www.thingiverse.com/thing:3515360 (by sierramike)A 'lock' that keeps the drawers in place when traveling: https://www.thingiverse.com/thing:3710407 (by HansSomers)A drawer with an extra label-holder on the handle: https://www.thingiverse.com/make:788318 (by papat400)A half-height drawer with 4 compartments, fit two in standard box slot: https://www.thingiverse.com/thing:4823715 (by jackricht)If you have created derivatives that you think are useful to other makers, please send me a link and description!For any requests or comments, please post a message.UPDATE 1: This thing is now fully customizable. Make storage boxes of your own specifications using the Thingiverse Customizer, or by editing the .scad file. Have fun!UPDATE 2: Added an 'empty drawer' on request (STL). These empty drawers, and other custom drawers, can also be created using the customizer. Added a new type of handle for the drawers (thin handle). Added word-document with labels for the thin handle drawers.Fixed an issue when the walls in the drawers could get stuck on the drawer stoppers.UPDATE 3:Fixed the width of the normal handle to correctly adjust for drawer width.UPDATE 4:Fixed an issue where the customizer rendered correctly, but would give an error when trying to create a derived thing. Fixed issue with handles on very small drawers.UPDATE 5:Added 'custom sized box' to the customizer. Create resistor boxes with a specified final size!UPDATE 6:Check out this nice label generator for these boxes created by ArnieO (https://www.thingiverse.com/ArnieO/about). Download the excel file here: https://www.thingiverse.com/asset:132138. See example here: https://www.thingiverse.com/make:596786.UPDATE 7:Fixed an issue with the drawers being made out of several shells, they are single shell now, easier for slicers. All drawer STL files have been re-uploaded.Recreated 'drawer shrink' tolerance setting. the TOLERANT drawers use 0.2mm on this setting. Also changed the behavior on this setting, will no longer shrink the front of the drawer.Fixed the width of the labels in the word files.Added affiliate links for cheap resistors. Thanks to oliver_midbrink (https://www.thingiverse.com/oliver_midbrink/about) for the idea!UPDATE 8:Added some links to useful user created derivatives and extended label document.UPDATE 9:Fixed custom box size so the height will be exactly as specified. This may slightly increase the vertical spacing between drawers in some cases.
